How do Mixture-of-Experts (MoE) models work?

Mixture-of-Experts (MoE) models are a way to make very large AI models more powerful without requiring all of their parameters to be used for every input.

The Core Idea

Instead of having one giant neural network process every token, an MoE model contains:

• A router (or gating network)
• Multiple expert networks
• A mechanism to combine the results
• When a token enters the model:
• The router examines the token.
• It decides which expert(s) are most suitable.
• Only those selected experts perform computation.
• Their outputs are combined and passed to the next layer.

Think of it like a company:

• A receptionist (router) receives a request.
• The request is forwarded to the most qualified specialists (experts).
• Only those specialists work on it.
• Their results are returned.

Dense Models vs MoE Models

Dense Model

Every parameter participates in every forward pass.

Input
  ↓
All neurons compute
  ↓
Output

If a model has 100 billion parameters, all 100 billion are involved in every token's computation.

MoE Model

Only a subset of parameters is activated.

Input
  ↓
Router
  ↓
Experts 3 and 7 selected
  ↓
Only those experts compute
  ↓
Output

A model may contain 100 billion total parameters, but perhaps only 10–20 billion are active for a given token.

This is often called sparse activation.

A Simple Example

Suppose we have 8 experts:

• Expert 1: mathematics
• Expert 2: programming
• Expert 3: biology
• Expert 4: law
• Expert 5: creative writing
• Expert 6: translation
• Expert 7: reasoning
• Expert 8: general language

When the model sees:

"Write Python code to sort a list"

the router may assign:

• 70% weight to programming expert
• 30% weight to reasoning expert

The final output is a weighted combination of those experts' outputs.

In practice, experts do not have explicit human-readable specialties; they learn them automatically during training.

Top-k Routing

Most modern MoE systems use Top-k routing.

The router scores all experts:

Expert	Score
E1	0.05
E2	0.60
E3	0.02
E4	0.01
E5	0.10
E6	0.03
E7	0.15
E8	0.04

If k = 2, the router selects:

• E2
• E7

Only these experts run.

This greatly reduces computation.

Why Use MoE?

1. More Parameters

A dense model might be limited to:

70B parameters

An MoE model might have:

• 500B total parameters
• only 50B active at once
• This allows much larger capacity.
• 2. Lower Compute Cost

Since only a few experts run, inference can be cheaper than activating all parameters.

3. Specialization

Different experts naturally become better at different patterns:

• code
• reasoning
• languages
• mathematics
• scientific text

The router learns when to use each one.

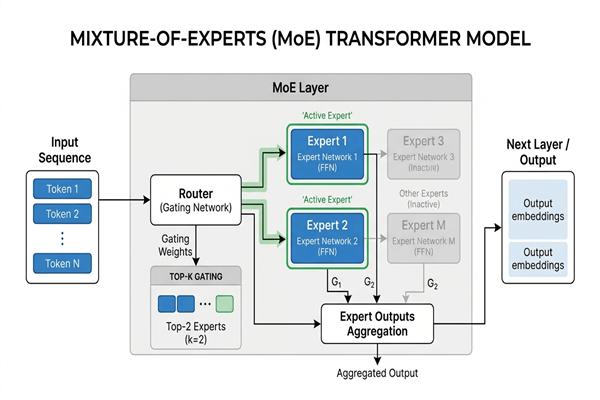

Typical MoE Layer

Modern transformer MoE models usually keep:

• Attention layers dense
• Feed-forward layers replaced with expert pools

A standard transformer block:

Attention
    ↓
Feed Forward Network

becomes:

Attention
    ↓
Router
    ↓
Selected Experts
    ↓
Combined Output

This means only part of the transformer becomes sparse.

Training Challenges

Expert Collapse

The router may start sending most tokens to only a few experts.

Example:

Expert 1: 70%
Expert 2: 20%
Expert 3–8: almost unused

Then many experts never learn.

To prevent this, training includes load balancing losses that encourage experts to receive roughly equal traffic.

Capacity Limits

Each expert can process only a limited number of tokens per batch.

If too many tokens choose the same expert:

• some tokens may be dropped
• or rerouted
• This must be managed carefully.

Communication Overhead

In distributed training:

• Expert 1 may live on GPU A
• Expert 2 on GPU B
• Expert 3 on GPU C

Tokens must be transferred between GPUs according to router decisions.

This "all-to-all communication" can become a major bottleneck.

Real-World MoE Models

Examples include:

• Switch Transformer
• GShard
• Mixtral 8x7B
• DeepSeek-V3
• DeepSeek-R1

For example, "8×7B" in Mixtral does not mean 56B parameters are active. It means there are eight expert networks of roughly 7B parameters each, but only a subset (often two experts) is used per token.

An Intuitive Analogy

Imagine a hospital with:

100 doctors total

only 2–3 doctors assigned to each patient

The hospital has enormous expertise overall, but any individual case only uses the specialists relevant to it.

A dense model is like asking all 100 doctors to examine every patient.

An MoE model is like using a triage system to select the right specialists.

The Key Insight

The innovation behind MoE is:

Increase model capacity dramatically while keeping the amount of computation per token relatively small.

Mathematically, you can think of it as:

Total parameters → very large

Active parameters per token → much smaller

This allows modern AI systems to scale to hundreds of billions or even trillions of parameters without requiring proportional computation for every token.
